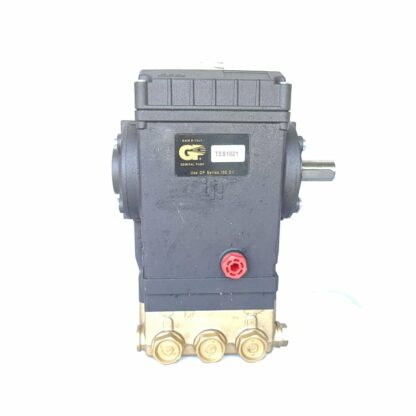

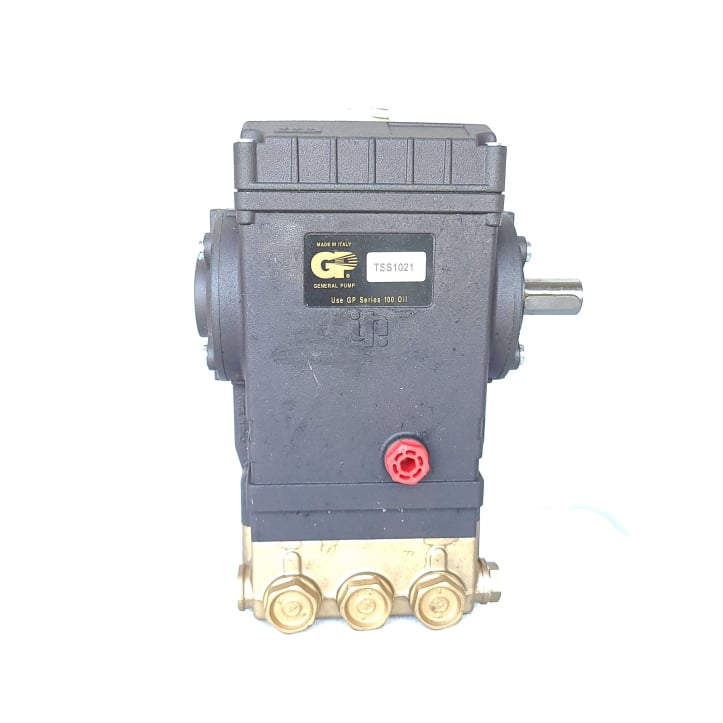

Solid shaft with pump rails 24mm shaft 1/2” BSP-F inlet, 3/8” BSP-F outlet
- Manifold with fine thread valve caps
- The preferred pump frame in the pressure cleaning industry
- Forged brass manifold with an exclusive lifetime warranty
- Large capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
- Designed for suction applications
- Maximum volume: 4.5/ 5.6 GPM
- Maximum Pressure: 3500 and 1700 PSI
- Maximum PumSpeeded: 1125 RPM and 1450 RPM
- Maximum inlet pressure: 125 PSI
- Plunger Stroke: 16mm
- Crankcase oil capacity: 40.6 oz.
- Maximum Temperature: 165 F.
- Inlet Port: 1/2″ FPT
- Discharge Port: 3/8: FPT
- Shaft diameter: .945in / 24mm
- Weight: 32.7 lbs.
- Dimensions: 12.2″ x 9.2″ x 6.9″
- Manufacturer warranty: 5 years
