63 Series General Pump

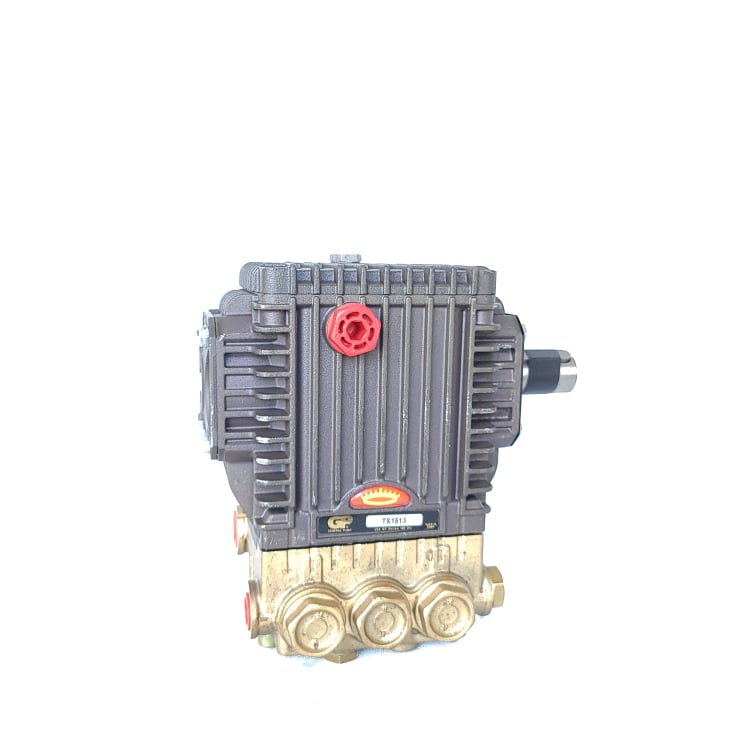

This TX series pump is a triplex plunger pump featuring a solid ceramic plunger with a dual guide system. Its new optimized outlet valves help provide durability and reliability for long-lasting performance. Features solid, oversized bearings on both sides and a new generation seal system for longer life.
- Energized special pressure packings.
- Solid ceramic plungers.
- Ball bearings on both sides.
- Patented “high tech” low and high-pressure seals.
HP: 6.2 EBHP
Bore: .591 in./15 mm
Stroke: .512 in.
Minimum Inlet Pressure: 3 Ft. Water / 2.6 In. Hg.
Plunger Bore (in / mm): .591 in. / 15 mm .709 in. / 18 mm
Plunger Stroke (in / mm): .512 in. / 13 mm
Oil Capacity: 14.0 oz.
Maximum Fluid Temperature: 165oF
Inlet Port Thread 1/2 – 14 BSPP-F
Discharge Port Thread: 3/8 – 19 BSPP-F
Shaft Diameter: .945 in. / 24 mm
Weight: 19 lbs.
Dimensions: 8.4 in. x 8.3 in. x 4.8 in.
